Product details
Product Description

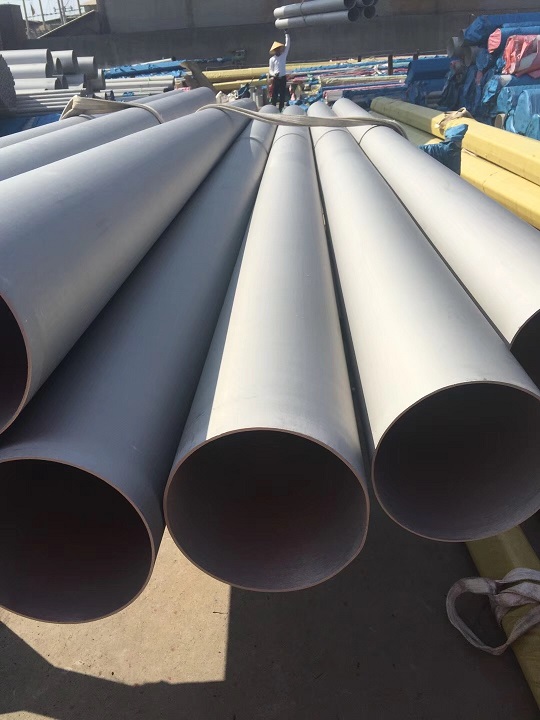

API 5L Oil and Gas Line Pipe, Seamless Steel Tube, Pressure Tube, High Temperature Pipe, Line Steel Pipe
Size Range
| NPS | Outside Diameter （mm） | Wall Thickness (mm) | |||||||||||||||||||||||
| 1/8 | 10.3 | 1.24 | 1.45 | 1.73 | 2.41 | ||||||||||||||||||||
| 1/4 | 13.7 | 1.65 | 1.85 | 2.24 | 3.02 | ||||||||||||||||||||
| 3/8 | 17.1 | 1.65 | 1.85 | 2.31 | 3.20 | ||||||||||||||||||||
| 1/2 | 21.3 | 2.77 | 3.73 | 4.78 | 7.47 | ||||||||||||||||||||
| 3/4 | 26.7 | 2.11 | 2.41 | 2.87 | 3.91 | 5.56 | 7.82 | ||||||||||||||||||
| 1 | 33.4 | 2.77 | 2.90 | 3.38 | 4.55 | 6.35 | 9.09 | ||||||||||||||||||
| 1-1/4 | 42.2 | 2.77 | 2.97 | 3.56 | 4.85 | 6.35 | 9.70 | ||||||||||||||||||
| 1-1/2 | 48.3 | 2.77 | 3.18 | 3.68 | 5.08 | 7.14 | 10.15 | ||||||||||||||||||
| 2 | 60.3 | 2.11 | 2.77 | 3.18 | 3.58 | 3.91 | 4.37 | 4.78 | 5.54 | 6.35 | 7.14 | 8.74 | 11.07 | ||||||||||||
| 21/2 | 73 | 2.77 | 3.05 | 3.18 | 3.56 | 3.96 | 4.37 | 4.78 | 5.16 | 5.49 | 6.35 | 7.01 | 9.35 | 14.02 | |||||||||||
| 3 | 88.9 | 4.37 | 4.78 | 5.49 | 6.35 | 7.14 | 7.62 | 11.13 | 15.24 | ||||||||||||||||
| 31/2 | 101.6 | 4.78 | 5.74 | 6.35 | 7.14 | 8.08 | |||||||||||||||||||
| 4 | 114.3 | 4.78 | 5.16 | 5.56 | 6.02 | 6.35 | 7.14 | 7.92 | 8.56 | 11.13 | 13.49 | 17.12 | |||||||||||||
| 5 | 141.3 | 4.78 | 5.56 | 6.55 | 7.14 | 7.92 | 8.74 | 9.53 | 12.70 | 15.88 | 19.05 | ||||||||||||||
| 6 | 168.3 | 5.16 | 5.56 | 6.35 | 7.11 | 7.92 | 8.74 | 9.53 | 10.97 | 12.70 | 14.27 | 15.88 | 18.26 | 18.26 | 19.05 | 21.95 | 22.23 | ||||||||
| 8 | 219.1 | 6.35 | 7.04 | 7.92 | 8.18 | 8.74 | 9.53 | 10.31 | 11.13 | 12.70 | 14.27 | 15.09 | 15.88 | 18.26 | 19.05 | 20.62 | 22.23 | 23.01 | 25.40 | ||||||
| 10 | 273 | 6.35 | 7.09 | 7.80 | 8.74 | 9.27 | 11.13 | 12.70 | 14.27 | 15.09 | 15.88 | 18.26 | 20.62 | 21.44 | 22.23 | 23.83 | 25.40 | 28.58 | 31.75 | ||||||
| 12 | 323.8 | 6.35 | 7.14 | 7.92 | 8.38 | 8.74 | 9.53 | 10.31 | 11.13 | 12.70 | 14.27 | 15.88 | 17.48 | 19.05 | 20.62 | 21.44 | 22.23 | 23.83 | 25.40 | 26.97 | 28.58 | 31.75 | 33.32 | ||
| 14 | 355.6 | 6.35 | 7.14 | 7.92 | 8.74 | 9.53 | 10.31 | 11.13 | 11.91 | 12.70 | 14.27 | 15.09 | 15.88 | 17.48 | 19.05 | 20.62 | 22.23 | 23.83 | 25.40 | 26.97 | 27.79 | 28.58 | 31.75 | 35.71 | 50.8 |
| 16 | 406.4 | 7.14 | 7.92 | 8.70 | 9.53 | 10.31 | 11.13 | 11.91 | 12.70 | 14.27 | 15.88 | 16.66 | 17.48 | 19.05 | 20.62 | 21.44 | 22.23 | 23.83 | 25.40 | 26.19 | 26.97 | ||||
| 18 | 457 | 7.14 | 7.92 | 8.74 | 9.53 | 10.31 | 11.13 | 11.91 | 12.70 | 14.27 | 15.88 | 17.48 | 19.05 | 20.62 | 22.23 | 23.83 | 25.40 | 26.97 | 28.58 | 29.36 | 30.18 | ||||
| 20 | 508 | 8.74 | 9.53 | 10.31 | 11.13 | 11.91 | 12.70 | 14.27 | 15.09 | 15.88 | 17.48 | 19.05 | 20.62 | 22.23 | 23.83 | 25.40 | 26.19 | 26.97 | 28.58 | 30.18 | 31.75 | ||||
| 22 | 559 | 8.74 | 9.53 | 10.31 | 11.13 | 11.91 | 12.70 | 14.27 | 15.88 | 17.48 | 19.05 | 20.62 | 22.23 | 23.83 | 25.40 | 26.97 | 28.58 | 30.18 | 31.75 | 33.32 | 34.93 | ||||
| 24 | 610 | 8.74 | 9.53 | 10.31 | 11.13 | 11.91 | 12.70 | 14.27 | 15.88 | 17.48 | 19.05 | 20.62 | 22.23 | 23.83 | 24.61 | 25.40 | 26.97 | 28.58 | 30.18 | 30.96 | 31.75 | 33.32 | 34.93 | 36.53 | 38.1 |
| 26 | 660 | 9.53 | 10.31 | 11.13 | 11.91 | 12.70 | 14.27 | 15.88 | 17.48 | 19.05 | 20.62 | 22.23 | 23.83 | 25.40 | |||||||||||
| 28 | 711 | 9.53 | 10.31 | 11.13 | 11.91 | 12.70 | 14.27 | 15.88 | 17.48 | 19.05 | 20.62 | 22.23 | 23.83 | 25.40 | |||||||||||
| 30 | 762 | 9.53 | 10.31 | 11.13 | 11.91 | 12.70 | 14.27 | 15.88 | 17.48 | 19.05 | 20.62 | 22.23 | 23.83 | 25.40 | 26.97 | 28.58 | 30.18 | 31.75 | |||||||
Material / Steel Grade:
PSL1:A/L210、B/L245、X42/L290、X46/L320、X52/L360、X56/L390、X60/L415、X65/L450、X70/L485
PSL2: L245N/Q、L290R/N/Q、L320N/Q、L360N/Q、L390N/Q、L415N/Q、L450N/Q、L485N/Q
Stainless Steel: TP304/L, TP316/L, S31803
Manufacturing Standards
API 5L PSL1, API5L PSL2, ISO 3183, GB/T9711, DNV-OS-F101, CSA Z245.1, KOC-MS-001, IPS-M-PI-190
ASTM A53/A106/A213/A269/A312 JIS G3454 DIN17175 EN10216

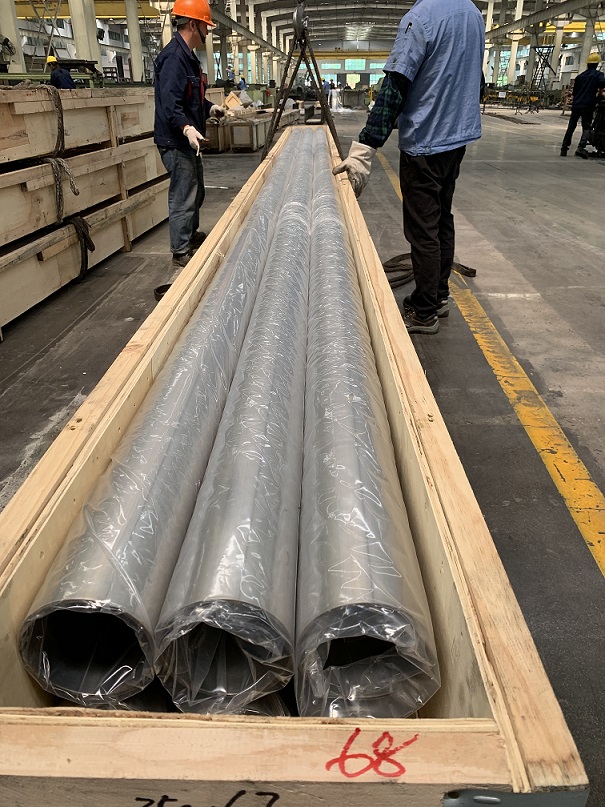

Coating and Packing
Black paint, varnish, internal and external anti-corrosion coating, steel banding, waterproof bag packing and so on, as required by customers.
Main Purpose
Transport oil and gas or other media, pressure and high temperature tubings.
